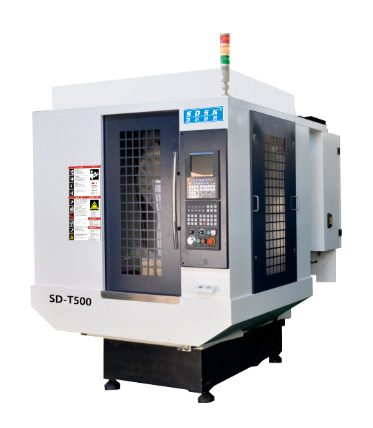

CNC high-speed drilling machine SD-T500
1、 Suitable for processing products: precision engraving, milling, cutting, expanding, punching, tapping and other processing of various types of steel, copper, aluminum, acrylic, plastic and other parts< Br/>
&Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp< Br/>
&Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp; (Similar in appearance, subject to actual product)
&Nbsp< Br/>
2、 List of Main Machine Configuration (Unit: mm)
Regulations; Grid; Speak; bright
quantity
Origin
Fanuc System (Oi-MF PLUS; bisC8/3000+aiS8/4000 * 2+aiS12B/4000+ail2/20000 SP)
full set
Japan
Use Taiwan Shangyin/Intime for XYZ axis; Precision Ball Linear Guide (XYZ30)
full set
Taiwan
Use Taiwan Shangyin/Intime for XYZ axis; Precision grinding ball screw (XY2816, Z3216)
full set
Taiwan
Taiwan Ruiying/Speedcn Direct Connection Short Nose Spindle BT30/110/20000rpm
1 unit
Taiwan
21 bit servo tool magazine (Yitai)
1 set
Taiwan
Cast iron bed body (HT300)
1 set
self-control
Cast iron mechanical parts (HT300)
1 batch
self-control
Distribution cabinet constant temperature air conditioning system (Red)
1 set
Dongguan
Schneider Electrical Accessories (Schneider)
1 batch
Tianjin
Pneumatic components (Yadeke)
1 batch
Taiwan
Imported SKF (SKF) bearings from Sweden
full set
Japan
Spindle water cooler (Reid)
1 unit
Dongguan
Electronic handwheel (Dongce)
1 set
Guangzhou
No need to pair the knife instrument
1 unit
self-control
XYZ axis with expandable steel plate cover
1 set each
self-control
X/Y/Z axis plastic drag chain (Dingtai)
1 set each
Dongguan
Automatic lubrication oil pump (Proton)
1 set
Dongguan
Air filter (Japanese Lehman M107-A air filter)
1 set
Zhejiang
Water spray device
2 sets
self-control
Water pump 750W
1 set
Changzhou
Machine tool accessories
1 set
Shenzhen
BT30 Knife Handle/Complete Set of Reduced Nipple (Three in One)
5
Shenzhen
Chain plate slag discharge machine
1 set
self-control
Four axis turntable (optional)
nothing
Taiwan
3、 Technical specification parameter table: (unit: mm)
model
SD-T500
Workbench size
650 * 400; (14T * 3 * 125)
Spindle nose end to workbench
Max 480~Min 150
Flying saucer tool magazine to workbench
four hundred and eighty
X-axis travel
five hundred
Travel Y-axis
four hundred
Z-axis travel
three hundred and thirty
X/Y/Z fastest movement speed
X48 meters per minute
Y48 meters/minute
Z48 meters/minute
Maximum processing speed
20 meters per minute
servo system
AC servo
System resolution
zero point zero zero one
Three axis verticality
0.015mm
Whole machine positioning accuracy
&Plusmn; 0.01mm
Localization accuracy
Within 300± 0.008mm
Repetitive positioning accuracy
0.005mm
Number of spindles
1 unit
Spindle servo power
5.5KW/piece
Spindle servo torque
26.3Nm/piece
Spindle speed
20000rpm/min
Servo tool magazine
21 digits
Knife changing method
automatic
Clamping tool handle
BT30
Knife alignment method
automatic
The countertop bears a load
300Kg
Rated voltage
380V/50HZ
Maximum power of the entire machine
13.5KW
Overall weight
About 2300kg
External dimensions (length * width * height)
Around 1850 * 2250 * 2480
4、 Standard configuration and accessories for the host:
one
Controller
eleven
1 mechanical, electrical, and operation manual
two
Direct spindle BT30-110-20000 short nose
twelve
Rigid tapping function
three
Automatic lubrication system
thirteen
Distribution cabinet air conditioning
four
Adjustable foundation cushion block
fourteen
Operation Manual, Program Manual, and User Manual
five
Toolbox
fifteen
5 BT30 blade heads (including rivets and wrenches)
six
Work lights
sixteen
BT30 locking tool holder
seven
Warning lights
seventeen
&Nbsp; M14 Ma Tie
eight
Spindle blowing device
eighteen
1 6-inch batch driver
nine
transmission line
nineteen
Lock Mouth; ER32 (4-20) 1 set
ten
Fully enclosed cover
twenty
Shield
5、 Machine environment and hardware facility requirements;
Number
Environmental projects
Project Requirements Standards
one
Power requirements
AC380V (4P) 50-60Hz, air switch 60A, power supply voltage fluctuation range 380V± Within 10%
two
air compressor
Using screw compressor, air storage tank, three-stage filtration,≥ 0.55Mpa, flow rate≥ 100L/min
three
Vacuum pressure
&Ge; 0.6 MPa
four
Air dryer
Must have an air dryer with automatic drainage function
five
Environmental noise/vibration
&Le; 75dba
six
Ground requirements
The ground is required to be flat, stable, and the difference between the highest and lowest points should not exceed 5mm
seven
Environmental humidity
Suggest 45% -65%
eight
Gas moisture content
No moisture
